Structural Board Thermal Floor System

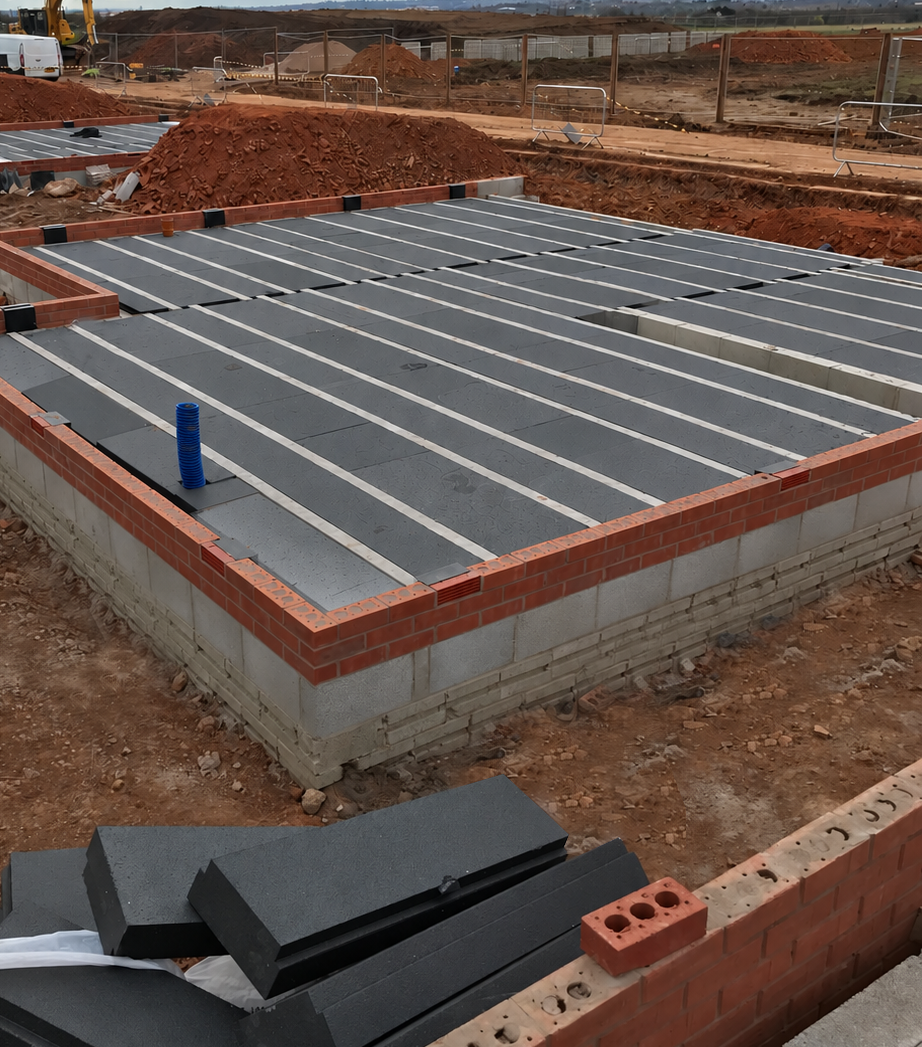

Structural Board is a thermal floor system for suspended floors.

It is designed to replace block and beam suspended floors with a fast, safe build and an excellent thermal performance that assists with achieving Part L compliance.







          Key Benefits

  • Reduced excavation
  • Less spoil removal
  • Improved health and safety
  • Achieves specified U-values
  • Outstanding Psi values
  • Zero waste left on site

Product specification

BEWI insulation is supplied in EPS (expanded polystyrene) or in HP (high performance) EPS to provide the required thermal performance.

BEWI EPS insulation is 100% recyclable and BEWI provides a site collection of clean material cut offs and these are recycled back into insulation boards.

BEWI manufactures to ISO 9001 and ISO14001 certified standards.

CE Marking
BEWI  Thermal Floor System  is CE marked. The Declaration of Performance (DOP) is available on request.

U-value table (W/m2K)



Thermal floor systems
Grey 150mm Infill Panel Grey 150mm Infill Panel Grey 150mm Infill Panel
Grey 80mm Top Sheet Grey 150mm Top Sheet Grey 225mm Top Sheet
P/A A B A B A B
0,80 0,16 0,16 0,11 0,12 0,09 0,09
0,70 0,16 0,16 0,11 0,12 0,09 0,09
0,60 0,15 0,16 0,11 0,11 0,09 0,09
0,50 0,15 0,15 0,11 0,11 0,09 0,09
0,40 0,15 0,15 0,11 0,11 0,09 0,09
0,30 0,14 0,14 0,10 0,11 0,08 0,08
