Foundation boards
Moulded EPS 100 GEO boards show lower water absorption comparing to conventional polystyrene foam.
They are produced using a specialized raw material. Water absorption after complete water immersion is below or equal to 1 %. EPS 100 GEO boards are made by forming the product contrary to the conventional EPS, which is cut from the big block. Due to this, granules of EPS foam stay intact and micro gaps between granules do not form, which further reduces water ability to penetrate the product.

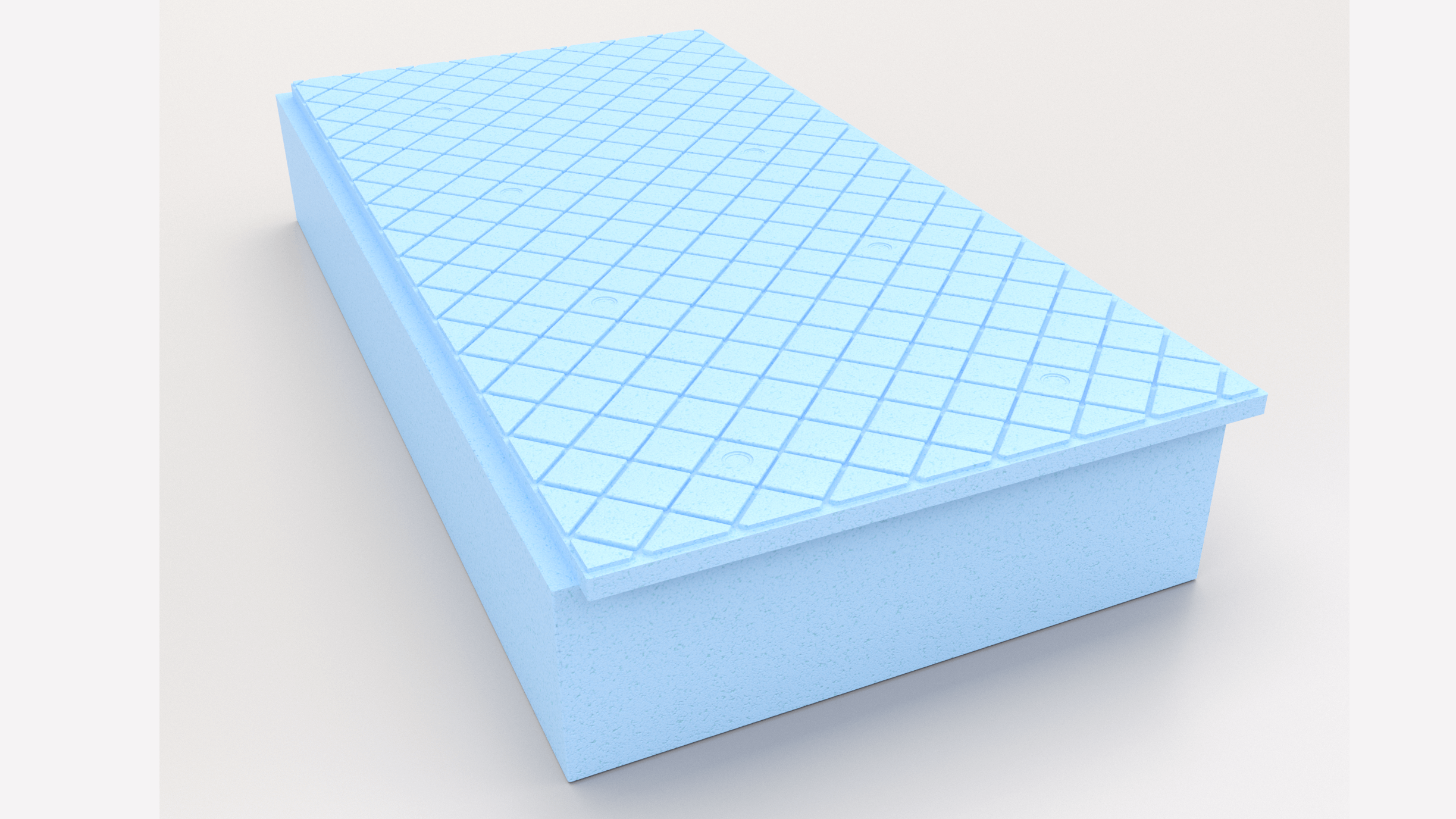

Moulded panels have extremely precise dimensions, which allows easier workflow during construction and helps to achieve better quality. Boards interlock with each other, which prevents them from detaching during construction as well as inhibits the formation of thermal bridges. Formed diagonal grooves on the surface of the board significantly improve the adhesion of mortar.

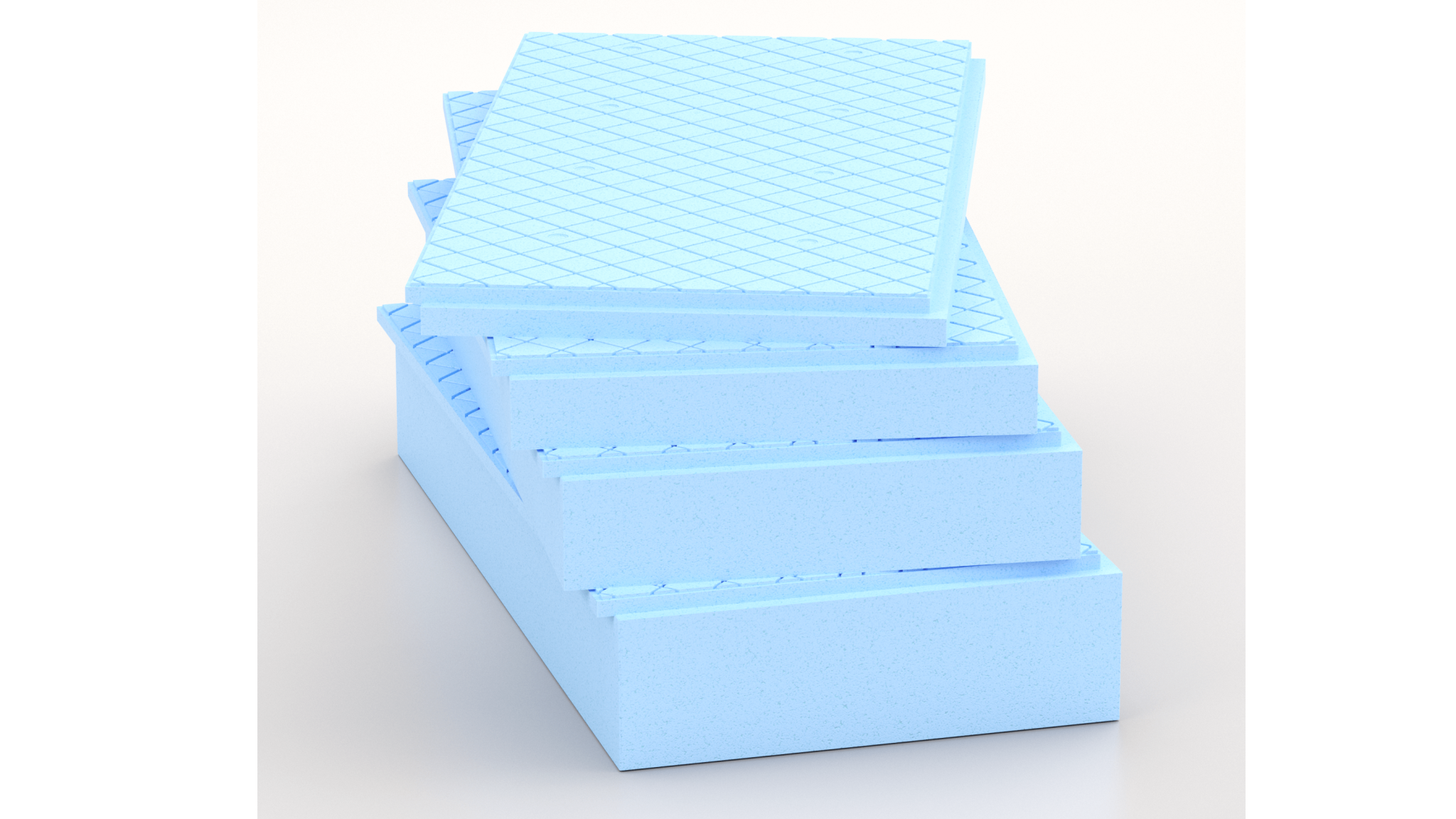

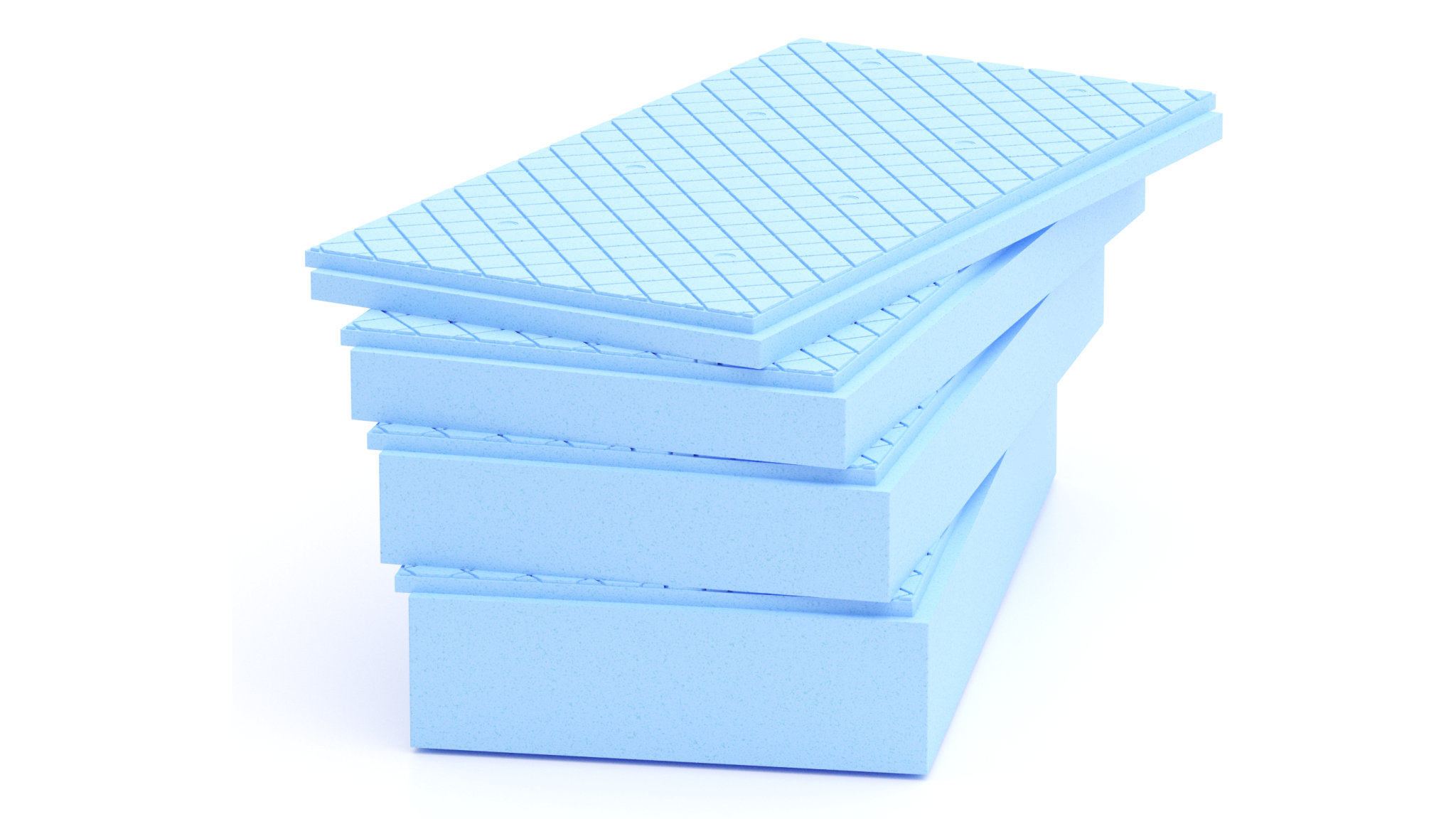

GEO boards are made of EPS 100 polystyrene foam. The dimensions of the board are 1.2 x 0.6 m. A wide variety of thicknesses will satisfy the needs of any customer, as the following options are available: 5, 10, 15 and 20 cm.
Technical parameters
Type of polystyrene foam
EPS 100 GEO
Thickness
50mm, 100mm, 150mm, 200mm
Standard dimensions
1200x600mm
Other parameters
With interlocking mechanism
Recommendations for use
Moulded EPS 100 GEO panels are designed for use wherever there is contact with the soil: for insulation of foundations, facades, basements, floors, ceilings.
Technical properties of polystyrene foam boards EPS 100 GEO
| GEO board thickness, mm | 50 | 100 | 150 | 200 |
| Long term water absorption by total immersion, WL(T)1 | ≤ 2 % | ≤ 2 % | ≤ 2 % | ≤ 2 % |
| Thermal conductivity, λD (W/m·K) | ≤ 0,036 | ≤ 0,036 | ≤ 0,036 | ≤ 0,036 |
| Compressive stress at 10% deformation, (kPa) | 100 | 100 | 100 | 100 |
| Bending strength (kPa) | 150 | 150 | 150 | 150 |
| Reaction to fire | E | E | E | E |
All properties are declared in accordance with the requirements of the EU standard EN 13163: 2012 + A1: 2015 and related documents.
